Spirolite HDPE Wall Mounted Flap Gate (Square) 1800MM (L) x 1800MM (H)
Spirolite HDPE Wall Mounted Flap Gate (Square) 1800MM (L) x 1800MM (H)
RM24,432.98
Price in reward points: 9772800
- Model: HDPE-WMFGS1800
Products Sold: 0
Product Views: 8730
Application
- Automatic operating control by hydro force.
- To prevent back flow from storm rain in main river flow into lower land area.
- Maintenance free and low head loss.
- Suitable use for water, waste water and pipeline application.
- Effective tidal and flood control.
Advantages
- High quality HDPE material and easy installation.
- High temperature and chemical resistance.
- UV protection and corrosion proof.
- Ability to withstand high water pressure.

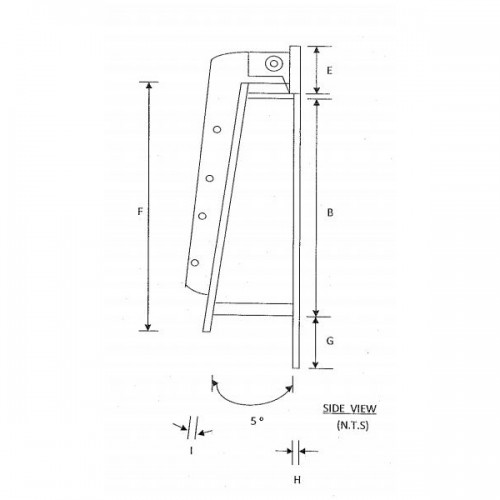

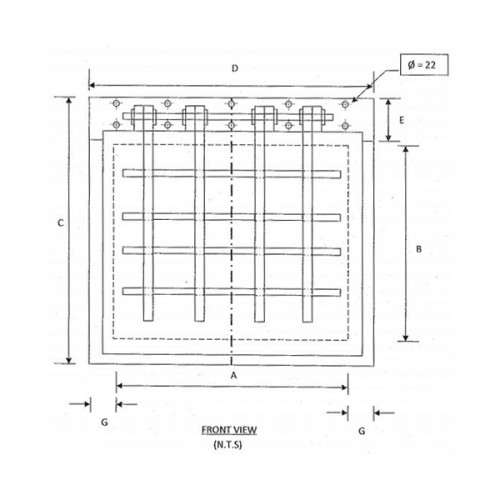

MODEL (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Nos of Wall Plug (Top Achor) | Nos of Wall Plug At "G" | H (mm) | I (mm) |
| 600 x 600 | 600 | 600 | 960 | 820 | 220 | 800 | 80 | 6 | 10 | 20 | 32 |
| 900 x 900 | 900 | 900 | 1300 | 1120 | 240 | 1100 | 100 | 6 | 14 | 25 | 32 |
| 1000 x 1000 | 1000 | 1000 | 1410 | 1260 | 250 | 1200 | 100 | 6 | 16 | 25 | 34 |
| 1200 x 1200 | 1200 | 1200 | 1610 | 1460 | 250 | 1400 | 100 | 10 | 17 | 30 | 34 |
| 1500 x 1500 | 1500 | 1500 | 1940 | 1800 | 260 | 1720 | 120 | 10 | 21 | 30 | 34 |
| 1800 x 1800 | 1800 | 1800 | 2250 | 2110 | 260 | 2020 | 120 | 10 | 25 | 30 | 36 |
Disclaimer
All product images shown are for illustration purposes only. Actual products may varies in term of size, type, brand, version, colour, and other relevant characteristics.
