Spirolite HDPE Wall Mounted Flap Gate (Circular) 900MM (L) x 900MM (H)
Spirolite HDPE Wall Mounted Flap Gate (Circular) 900MM (L) x 900MM (H)
RM7,207.20
Price in reward points: 2882800
- Model: HDPE-WMFGC900
Products Sold: 0
Product Views: 8903
Application
- Automatic operating control by hydro force.
- To prevent back flow from storm rain in main river flow into lower land area.
- Maintenance free and low head loss.
- Suitable use for water, waste water and pipeline application.
- Effective tidal and flood control.
Advantages
- High quality HDPE material and easy installation.
- High temperature and chemical resistance.
- UV protection and corrosion proof.
- Ability to withstand high water pressure.

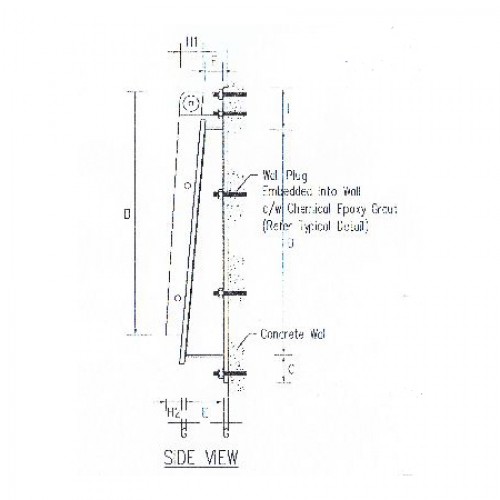

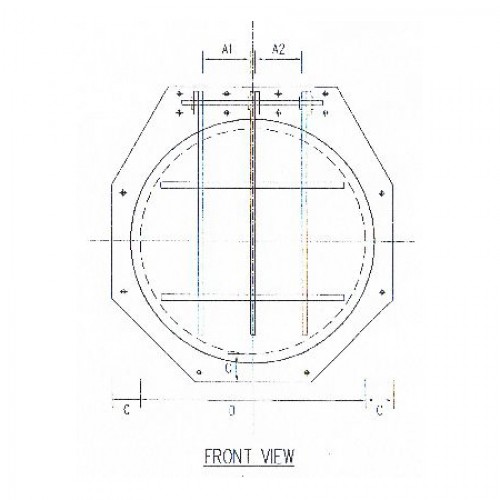

D | A1 | A2 | A3 | B | C | E | F | G | H1 | H2 | I |
| 600 | 300 | NA | NA | 690 | 150 | 170 | 70 | 20 | 100 | 50 | 150 |
| 900 | 280 | 280 | NA | 990 | 150 | 170 | 70 | 20 | 100 | 50 | 180 |
| 1000 | 300 | 300 | NA | 1090 | 150 | 170 | 70 | 25 | 100 | 50 | 200 |
| 1200 | 250 | 250 | NA | 1300 | 150 | 200 | 90 | 25 | 120 | 80 | 225 |
| 1500 | 280 | 280 | NA | 1600 | 150 | 250 | 120 | 30 | 120 | 80 | 250 |
| 1800 | 280 | 280 | 280 | 1900 | 150 | 300 | 150 | 30 | 140 | 80 | 250 |
