Spirolite HDPE Wall Mounted Flap Gate (Circular) 600MM (L) x 600MM (H)
Spirolite HDPE Wall Mounted Flap Gate (Circular) 600MM (L) x 600MM (H)
RM5,319.60
Price in reward points: 2127600
- Model: HDPE-WMFGC600
Products Sold: 0
Product Views: 6977
Application
- Automatic operating control by hydro force.
- To prevent back flow from storm rain in main river flow into lower land area.
- Maintenance free and low head loss.
- Suitable use for water, waste water and pipeline application.
- Effective tidal and flood control.
Advantages
- High quality HDPE material and easy installation.
- High temperature and chemical resistance.
- UV protection and corrosion proof.
- Ability to withstand high water pressure.

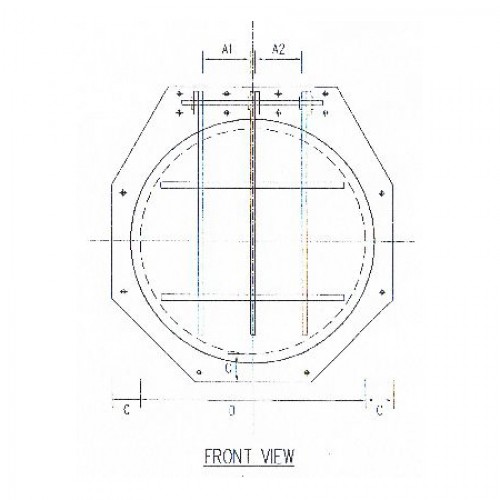

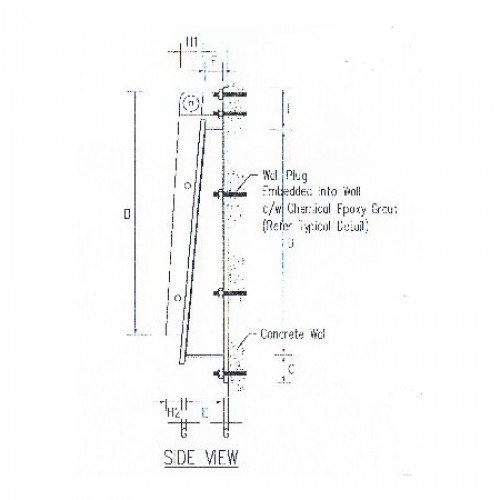

D | A1 | A2 | A3 | B | C | E | F | G | H1 | H2 | I |
600 | 300 | NA | NA | 690 | 150 | 170 | 70 | 20 | 100 | 50 | 150 |
900 | 280 | 280 | NA | 990 | 150 | 170 | 70 | 20 | 100 | 50 | 180 |
1000 | 300 | 300 | NA | 1090 | 150 | 170 | 70 | 25 | 100 | 50 | 200 |
1200 | 250 | 250 | NA | 1300 | 150 | 200 | 90 | 25 | 120 | 80 | 225 |
1500 | 280 | 280 | NA | 1600 | 150 | 250 | 120 | 30 | 120 | 80 | 250 |
1800 | 280 | 280 | 280 | 1900 | 150 | 300 | 150 | 30 | 140 | 80 | 250 |
Disclaimer
All product images shown are for illustration purposes only. Actual products may varies in term of size, type, brand, version, colour, and other relevant characteristics.
