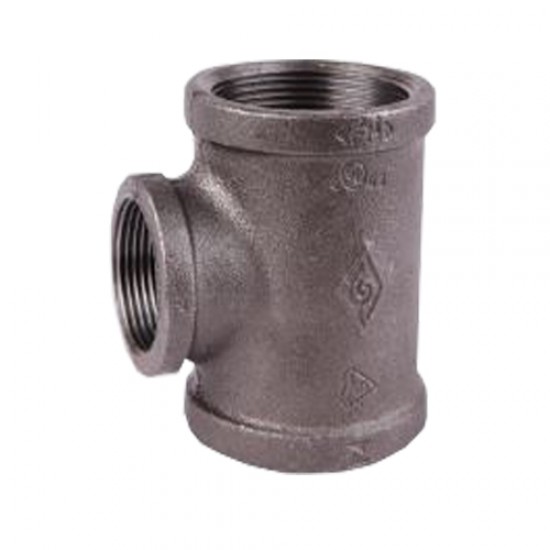

Black Malleable Iron Steam Pipe Fittings Reducing Tee 3" x 1"

SPECIAL ORDER - OUR SPECIAL ORDER SERVICE ALLOWS YOU TO CHOOSE FROM A EVEN BIGGER RANGE. Special Orders require 7 to 14 working days to be ready for collection or delivery and some products might take longer to order in. Please contact us for more information or estimated delivery time before placing your order.

Description

• Size: 3" (80mm) x 1" (25mm) .
• Dimensions (A x B): 51mm x 67mm.
• Material: Malleable Iron.
• Type: Reducing Tee.

	Size	Inch	4 x 1/2	4 x 3/4	4 x 1	4 x 1 ¼	4 x 1 ½	1/2 x 3/8	3/4 x 3/8	4 x 2
		mm	100 x 15	100 x 20	100 x 25	100 x 32	100 x 40	15 x 10	20 x 10	100 x 50
	Dim. (mm)	A	50	53	56	60	61	26	28	70
		B	79	79	81	84	84	26	28	86
	Size	Inch	4 x 2 ½	4 x 3	3/4 x 1/2	1 x 3/8	1 x 1/2	1 x 3/4	1 ¼ x 3/4	1 ¼ x 1
		mm	100 x 65	100 x 80	20 x 15	25 x 10	25 x 15	25 x 20	32 x 20	32 x 25
	Dim. (mm)	A	84	82	30	30	32	35	36	40
		B	92	90	31	32	34	36	41	42
	Size	Inch	1 ½ x 3/8	1 ¼ x 3/8	1 ¼ x 1/2	2 x 1 ½	2 ½ x 1/2	2 ½ x 3/4	1 ½ x 1/2	1 ½ x 3/4
		mm	40 x 10	32 x 10	32 x 15	50 x 40	65 x 15	65 x 20	40 x 15	40 x 20
	Dim. (mm)	A	34	32	34	52	40	43	36	38
		B	39	36	38	55	56	57	42	44
	Size	Inch	1 ½ x 1	1 ½ x 1 ¼	2 x 3/8	2 ½ x 1	2  ½ x 1 ¼	2  ½ x 1 ½	2 ½ x 2	3 x 1/2
		mm	40 x 25	40 x 32	50 x 10	65 x 25	65 x 32	65 x 40	65 x 50	80 x 15
	Dim. (mm)	A	42	46	36	47	52	55	61	42
		B	46	48	46	60	62	63	66	64
	Size	Inch	2 x 1/2	2 x 3/4	2 x 1	2 x 1 ¼	3 x 2	3 x 3/4	3 x 1	3 x 1 ¼
		mm	50 x 15	50 x 20	50 x 25	50 x 32	80 x 50	80 x 20	80 x 25	80 x 32
	Dim. (mm)	A	38	40	44	48	64	45	51	55
		B	48	50	52	54	73	65	67	70
	Size	Inch	3 x 1 ½	3 x 2 ½
		mm	80 x 40	80 x 65
	Dim. (mm)	A	58	72
		B	71	76
