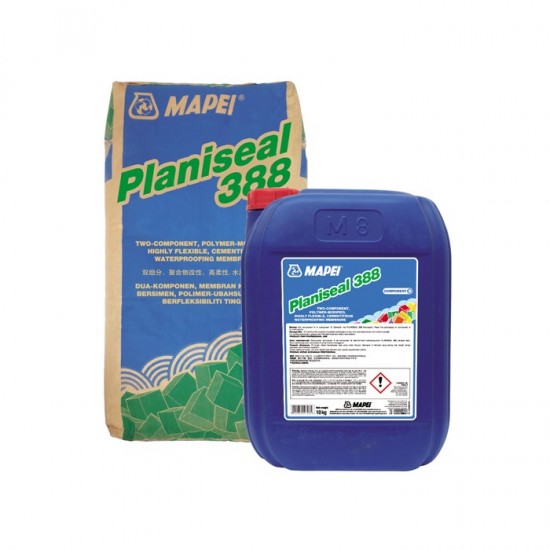

Mapei Planiseal 388 Two Component Cementitious Waterproofing Membrane 30KG (Part A: 20KG + Part B: 10KG)
Mapei Planiseal 388 Two Component Cementitious Waterproofing Membrane 30KG (Part A: 20KG + Part B: 10KG)
- Brand MAPEI
- Model: MP-P388
Description
• Planiseal 388 is a two-component mortar, composed of a cement-based compound, selected graded aggregates, special additives and synthetic polymers in water dispersion, blended according to a formula developed in the MAPEI research laboratories. When mixed, Planiseal 388 becomes a fluid mortar that can be applied by brush, roller, trowel or by spray machine on horizontal and vertical surfaces. Planiseal 388 cures to form a waterproofing membrane with excellent adhesion to the substrate.
Features
• Vapour-permeable can be applied on damp substrates.
• Easy application by brush, roller or trowel .
• Highly flexible with good crack-bridging properties .
• Compatible with ceramic, mosaic and natural stone coverings.
• Can be combined with Mapetex 50 for excellent mechanical properties .
• Reduce carbon dioxide penetration.
• Non-toxic.
• Colour
- Part A: Grey.
- Part B: White.
• Packaging: 30KG (Part A: 20KG + Part B: 10KG)
• Storage: Store the product components in their original unopened packaging in a cool dry place. Part A & B 12 months.
Technical Data
PRODUCT IDENTITY
Component A
• Consistency: powder
• Colour: grey
• Specific gravity (kg/m ): 1.30
Component B
• Consistency: liquid
• Colour: white
• Specific gravity (kg/m ): 1.04
APPLICATION DATA (at 23°C at 50% R.H.)
• Colour of mix: grey
• Mixing ratio: component A : component B = 2 : 1
• Consistency: fluid
• Viscosity of mix (mPa•s): 2.2
• Density of mix (kg/m ): approx. 1560
• pH of mix: approx. 12
• Application temperature (°C): from +5 to +35
• Pot life at 20°C (mins): 60
• Application of following coats at 20°C (hrs): after 5 but not more than 24
• Ready for over-lay (days): 3 days
FINAL PERFORMANCES
• Adhesion to concrete 28 days (EN1542) (MPa): 0.8
• Crack-bridging ability (MGE 49) (mm): > 1
• Tensile strength (ASTM D412:2013) (MPa): 1.5
• Elongation at break (ASTM D412:2013) (%): 102
Where To Use
• Applied in slurry form to waterproof concrete and cement mortar surfaces. Also used as a smoothing and waterproofing compound for underground walls before laying pre-formed membranes.
Some application examples
Waterproofing:
▪ internal wet areas, eg: bathrooms, showers, kitchens, laundry areas;
▪ balconies and terraces before tiling;
▪ basins, reservoirs, concrete or masonry tanks;
▪ swimming pools and water features;
Recommendations
▪ Do not use Planiseal 388 for solving internal condensation problems (use dehumidifying renders, improve ventilation to the area or provide adequate insulation).
▪ Do not mix Planiseal 388 with additives, cement or aggregates.
▪ Do not apply Planiseal 388 to surfaces with standing water.
▪ Do not use the product if the packaging is damaged.
