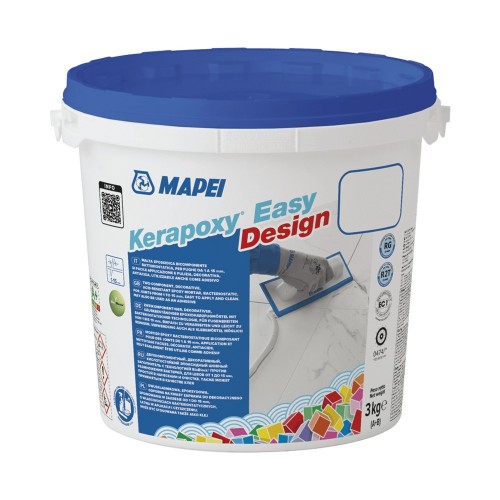

Mapei Kerapoxy Easy Design Epoxy Grout With Improved Workability And High Aesthetic Qualities 3KG (Part A: 2.7KG + Part B: 0.3KG)

Tags: Mapei

Mapei Kerapoxy Easy Design Epoxy Grout With Improved Workability And High Aesthetic Qualities 3KG (Part A: 2.7KG + Part B: 0.3KG)

RM215.00
Price in reward points: 86000
  • Brand MAPEI
  • Model: MP-MKED
Products Sold: 0
Product Views: 593

Available Options

Add to Cart
Click to share this page to your friends & families and start earning. Affiliate

Description
• Kerapoxy Easy Design is a two-component, epoxy resin-based decorative grout, with glass micro-spheres and other special components. It has an excellent resistance to acids, easy workability and is very easy to clean.
• Kerapoxy Easy Design has a bacteriostatic agent, preventing from the proliferation of bacteria and the formation of mould on the surfaces of grouts, making tiled surfaces hygienic and safe, thanks to the innovative BioBlock technology developed as a result of MAPEI research.
• This is a product with very low emission of volatile organic compounds and is classied Emicode EC1 Plus by GEV when used for grouting.
• Kerapoxy Easy Design may be mixed with up to 6 % by weight of MapeGlitter, metallised coloured glitter, to create aesthetic effects. Percentage depends on the aesthetic effect and workability desired. MapeGlitter is available in silver and gold.
• Kerapoxy Easy Design may be mixed with Mapecolor Metallic, available in pre-dosed sachets (90 g, equal to 3% by weight of a 3 kg drum of Kerapoxy Easy Design), powder pigment based on very high-quality pearlescent mica, to create a metallic effect. Mapecolor Metallic is available in Moonlight (similar to platinum), Sahara (similar to gold), Shining (similar to silver), Red clay (similar to copper), Stardust (similar to dark silver). In order to obtain a homogeneous mix, we suggest to add Mapecolor Metallic of the desired colour to Kerapoxy Easy Design 700 (translucent).
• Mixing Mapecolor Metallic with Kerapoxy Easy Design of other colours may result in numerous metallic effects with different intensity and shades. It is recommended to carry out preliminary tests since the result may vary based on the colours and quantities used, however within the maximum dosage of 3% by weight so that the workability of the grout/mortar is not affected.
• When applied correctly, Kerapoxy Easy Design produces joints with the following characteristics:
   - excellent mechanical strength and resistance to chemicals, therefore excellent durability;
   - smooth and compact surface nish which is non-absorbent and easy to clean; it guarantees a high level of hygiene, where a high protection from the formation and proliferation of micro-organisms (such as fungus and mould) is required;
   - excellent workability, much better than traditional epoxy mortars thanks to its creamy consistency, which guarantees faster application times and makes it easier to clean from surfaces, with less waste and easier to obtain a good nish;
   - no shrinkage and no cracks;
   - uniform colours, resistant to UV rays and atmospheric agents;
   - excellent bond;
   - certied according to ISO 22196:2011 as a grouting mortar protected against the formation and proliferation of micro-organisms.



Features
• Easy to apply.
• Non-absorbent and easy to clean.
• Certified anti-bacterial and mould-resistant.
• Helps keep the interiors more healthy.
• Complies with haccp food safety management procedures.
• Wide range of colours.
• Suitable for grouts up to 15 mm wide.
• Colour:
   - Kerapoxy Easy Design is available in 41 colours (40 colours + neutral - No. 700 translucent).
   - MapeGlitter is available in silver and gold.
   - Mapecolor Metallic is available in Moonlight (platinum), Sahara (gold), Shining (silver), Red clay (copper), Stardust (dark silver).
• Packaging:
   - Kerapoxy Easy Design is supplied, with mixing proportions carefully measured, in drums containing
   - component A and component B, which must only be added at the moment it is required.
   - The product is supplied in 3 kg and 1.5 kg units.
   - MapeGlitter is supplied in 100 g sachets.
   - Mapecolor Metallic is supplied in 90 g sachets, a sufcient quantity to be added to a 3 kg drum of Kerapoxy
   - Easy Design.
• Storage:
   - Kerapoxy Easy Design may be stored up to 24 months in its original packaging in a cool, dry place.
   - Store component A at a temperature of at least +10°C to avoid crystallisation of the product, reversible by heating up.



Technical Data
Conforms to the following standards:
– European EN 12004 as R2T
– ISO 13007-1 as R2T
– European EN 13888 as RG
– ISO 13007-3 as RG
PRODUCT IDENTITY
Component A
• Consistency: creamy paste
• Colour: available in 41 colours (40 colours + translucent)
• Density (g/cm³): 1.67
• Brookeld viscosity (mPa·s): 1000000
• EMICODE (used as grout): EC1 Plus - very low emission
Component B
• Consistency: gel
• Colour: available in 41 colours (40 colours + translucent)
• Density (g/cm³): 1.05
• Brookeld viscosity (mPa·s): 370000
• EMICODE (used as grout): EC1 Plus - very low emission
APPLICATION DATA (at +23°C and 50% R.H.)
• Mixing ratio: component A:component B = 90:10
• Consistency of mix: creamy paste
• Density of mix (kg/m³): 1550
• Pot life of mix: 45 minutes
• Application temperature range: from +12°C to +30°C
• Open time (as an adhesive): 40 minutes
• Adjustability time (as an adhesive): 60 minutes
• Set to light foot trafc: 24 hours
• Ready for use: 4 days (10 days for basins and swimming pools). Times may vary according to the temperature.
FINAL PERFORMANCE
• Bond (shear strength) according to EN 12003 (N/mm²):
– initial bond: 20
– after immersion in water: 20
– after thermal shock: 20
• Flexural strength (EN 12808-3) (N/mm²): 45
• Compressive strength (EN 12808-3) (N/mm²): 65
• Resistance to abrasion (EN 12808-2): 100
• Water absorption (EN 12808-5) (g): 0.02
• Resistance to moisture: excellent
• Resistance to ageing: excellent
• Resistance to solvents and oils: very good (see table)
• Resistance to acids and alkalis: excellent (see table)
• In service temperature: from -20°C to +100°C



Where To Use
• Decorative grouting of internal and external tiled oors and walls. Also suitable for an acid-resistant bond to all substrates normally used in the building industry.
• Kerapoxy Easy Design allows to create oors, walls, worktops etc. in compliance with the HACCP system and the requirements of EC Regulation No. 852/2004 on the hygiene of foodstuffs.



Some application examples
▪ Installing and grouting decorative coverings in environments with an high aesthetic value (e.g. showrooms, commercial environments, etc.).
▪ Installing and grouting oors and walls in showers and bathrooms. Suitable on breglass and PVC substrates.
▪ Installing and grouting oors and walls in thermal facilities, Turkish baths, etc.
▪ Installing and grouting swimming pools.
▪ Repairing existing degraded grouts by removing all loose areas and to a minimum uniform depth of 3 mm.



Recommendations
▪ Use Kerapoxy IEG to grout ceramic oors subject to attack by oleic acids (ham curers, sausage factories, oil mills, etc.) and aromatic hydrocarbons.
▪ Use a exible sealant from the MAPEI range (such as Mapesil AC, Mapesil LM, Mapeex PU 40, Mapeex PU 45 FT or Mapeex PU 50 SL) for exible expansion joints or for joints subject to movement.
▪ Kerapoxy Easy Design does not guarantee a perfect bond when used as a grout if the edges of tiles are wet or contaminated with cement, dust, oil, grease, etc.
▪ If porcelain tiles are grouted with a contrasting colour of Kerapoxy Easy Design (for example black on white), carry out preliminary tests beforehand.
▪ Always carry out preliminary tests before grouting stone or ground porcelain with a porous or rough surface.
▪ Do not add water or solvents to Kerapoxy Easy Design to increase its workability.
▪ Use the product at temperatures between +12°C and +30°C.
▪ The packages are pre-dosed and, therefore, it is not possible to make mixing errors. Do not estimate the quantities when mixing: hardening will be compromised if the catalysing ratio is wrong.
▪ If hardened Kerapoxy Easy Design has to be removed from the joints, use an industrial hot air blower. If hardened localised residues of the product remain attached to the tiles, use Pulicol 2000 for cleaning.
▪ Kerapoxy Easy Design mixed with MapeGlitter or Mapecolor Metallic is not suitable for swimming pools or external use.
