LYE Ductile Iron Double Flange 45º 250MM Bend K-12 (SIRIM)

Tags: LYE Ductile Iron Fitting Malaysia

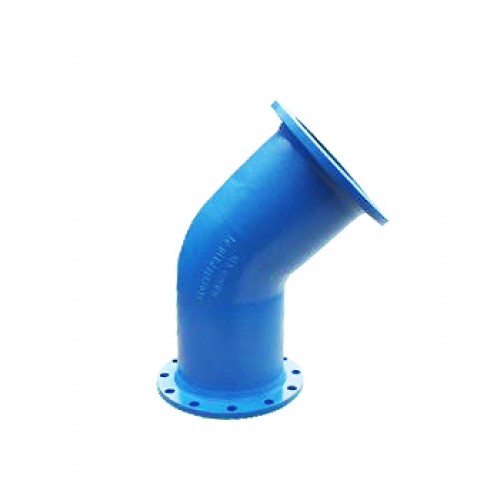

LYE Ductile Iron Double Flange 45º 250MM Bend K-12 (SIRIM)

This product qualifies for free shipping
Please check our free delivery coverage area. Terms & Conditions Apply*
Based on 0 reviews. | Write a review
RM982.80
RM1,404.00
Price in reward points: 392800
  • Brand LYE
  • Model: LYE-DF250
Products Sold: 0
Product Views: 2190
Add to Cart
Send Inquiry
Click to share this page to your friends & families and start earning. Affiliate

Description

  • Bitumin Coating Externally with IKRAM APPROVAL.
  • Conforming to BS EN545 c/w machinig & drilling, cement mortar lining internally.
  • Nominal Diameter (DN) : 250MM.
  • Dimension (t) x (e): 350MM x 9.0MM.
  • Wall Thickness (e): 9.0MM.
  • Scope of Supply: Bitumen black coating externally, and socket rubber rings only. (Flange drilled to BS4504 PN16).
  • Material: Ductile Iron Fittings.
  • Origin: Suasa Unik/Engtex (Made in Malaysia).
  • Available in FUSION BONDED EXPOXY (FBE) Coating finishing.

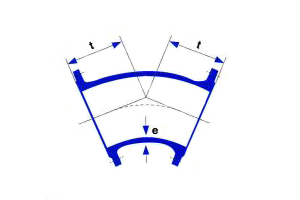

Specification

Nominal Diameter (DN)(t)(e)
801307.0
1001407.2
1501607.8
2001808.4
2503509.0
3004009.6
35029810.2
40032410.8
45034911.4
50037512.0
60042613.2
70047814.4
80052915.6
