Corkjoint Dowelform Dowelbar Sleeves (Including End Cap) 20MM (D) x 300MM (L)

Tags: Corkjoint , Dowelform Dowelbar Sleeves

Corkjoint Dowelform Dowelbar Sleeves (Including End Cap) 20MM (D) x 300MM (L)

Based on 0 reviews. | Write a review
RM5.95
Price in reward points: 2000
Products Sold: 0
Product Views: 4871
Add to Cart
Send Inquiry
Click to share this page to your friends & families and start earning. Affiliate

SPECIAL ORDER -  Special Orders require 7 to 14 working days to be ready for collection or delivery and some products might take longer to order in. Please contact us for more information or estimated delivery time before placing your order.



Product Description

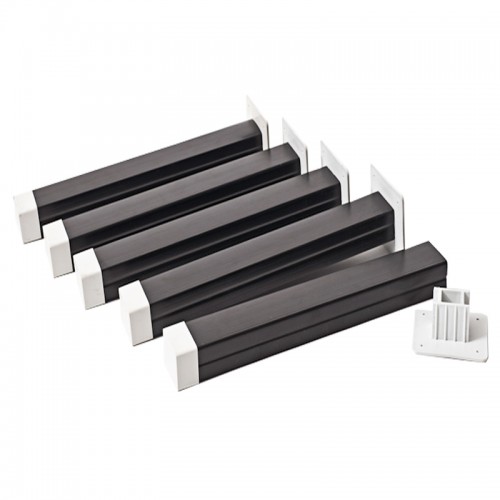

  • CORKJOINT Dowelform is a two part dowelbar sleeve system comprising a rigid PVC dowelbar sleeve and a reusable rigid PVC nailing plate. Dowelform is suitable for use with 20mm, 25mm and 32mm round or square dowelbars..
  • Dowelform allows for longitudinal movement as well as lateral (sideways) movement of the dowelbar for maximum joint performance. Compressible fins on either side of the sleeve enables the dowelbar to move sideways and locate the dowel centrally. .
  • Dowelform allows your dowelbars to be parallel to the subgrade and properly aligned. You can also achieve lateral (sideways) movement of +/-10 mm for round and square bars which will help to reduce internal stresses on the concrete..



Features



Advantages

  • Suitable for use with round and square dowels.
  • Allows for 20mm of longitudinal expansion movement of concrete.
  • Allows lateral (sideways) movement of all dowels.
  • No misaligned dowels to restrict joint movement.
  • Can prepare formboards with nailing plates prior to installation.
  • Eliminates drilling holes through formwork.
  • No dowelbars protruding form concrete.
  • Nailing plates are re-usable.
  • No need to coat dowelbars with bitumen, grease or de-bonding agents.
  • No need to apply an expansion cap on end of dowelbar.
  • Dowelled joint possible in all directions.
  • Suitable for post tensioning.



Area of Application

Construction joints, contraction joints, expansion joints in industrial buildings, roadways, curved joints, post tensioned slabs and new to existing concrete.
