Sunway Keramo Vitrified Clay Pipes (VCP) Straight Pipe 150MM (DIA) x 1.5M (L) (6" x 4.92')
Sunway Keramo Vitrified Clay Pipes (VCP) Straight Pipe 150MM (DIA) x 1.5M (L) (6" x 4.92')
RM94.05
RM99.00
Price in reward points: 37600
- Brand Sunway
- Model: KERAMO-SP150x1.5
Products Sold: 47
Product Views: 16539
Description
- Diameter: 150mm (6").
- Length: 1.5m (4.92').
Features
- Advanced European technology.
- Superior in quality.
- High structural strength.
- Fully glazed inside and out.
- Heat and chemical resistant.
- Proven durability.
- Socket/spigot type with prefabricated flexible joints.
- Approved to MS 1061:1999 and BS EN 295.
- Safe and easy palletised packing.
Specifications
- Accurate dimensional tolerance.
- Bending moment resistance.
- Crushing strength.
- Water tightness.
- Chemical resistance.
- Deflection.
- Shear resistance.

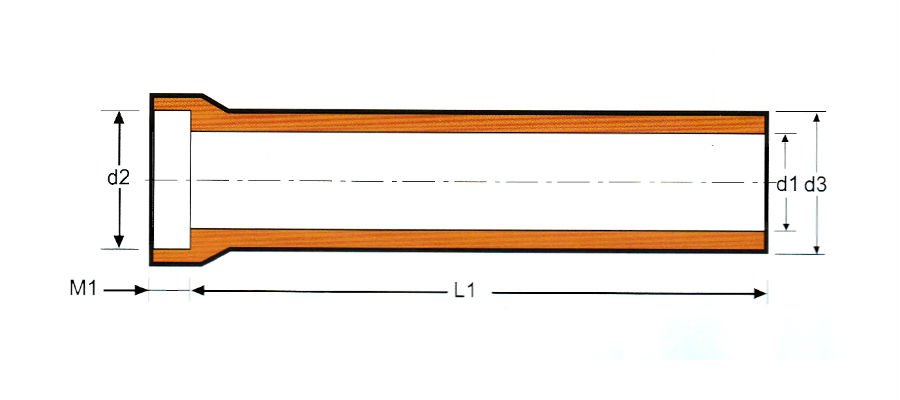

| Dimensions | Diameter DN (mm) | ||||||||
| 150 | 200 | 225 | 250 | 300 | 375 | 450 | 600 | ||
| L1 (mm) | 1500 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |
| M1 (mm) | 75 | 75 | 70 | 75 | 70 | 70 | 75 | 85 | |
| d1 (mm) | 150 | 200 | 225 | 244 | 300 | 375 | 450 | 595 | |
| d2 (mm) | 205 | 262 | 291 | 318 | 376 | 483 | 567 | 773 | |
| d3 (mm) | 188 | 242 | 271 | 298 | 355 | 449 | 532 | 731 | |
| ~Weight (kg) | 40 | 82 | 85 | 101 | 127 | 198 | 300 | 530 | |
Disclaimer
All product images shown are for illustration purposes only. Actual products may varies in term of size, type, brand, version, colour, and other relevant characteristics.
