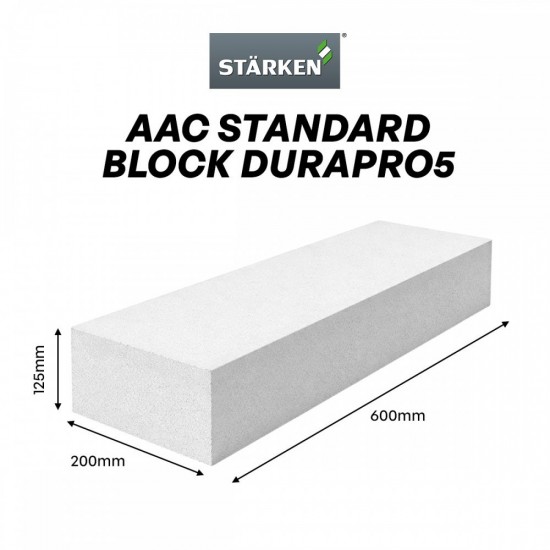

Starken DuraPro5™ Autoclaved Aerated Light-Weight Concrete (AAC) Block 125MM (T) x 600MM (L) x 200MM (H) S5
Starken DuraPro5™ Autoclaved Aerated Light-Weight Concrete (AAC) Block 125MM (T) x 600MM (L) x 200MM (H) S5
- Brand Starken
- Model: STK-S5-ACC0.125
Packaging Size: 144 PCS/PALLET
Description
Starken Standard Blocks offer a fast, convenient and versatile solution for most walling requirements. Each block is equivalent to 7 pieces of common brick. Starken AAC blocks are easy to work with and can be cut to size with a tungsten carbide-tipped handsaw. This allows maximum flexibility and minimises wastage.
Application:
- General internal & external walls.
- Party, compartment & separating walls.
- Acoustic & fire-rated walls.
- Only Block thickness 125mm & above are suitable for use as load-bearing walls.
Specification
| Property | Value |
| Length (L) x Height (H) | 600mm (L) x 200mm (H) |
| Thickness (T) | 100 - 200mm |
| Nominal Dry Density | 600 ± 50 kg/m³ |
| Working Density | 840 ± 50 kg/m³ |
| Compressive Strength | 5.5 MPa |
| Thermal Concuctivity, K | 0.244 W/m.k |
| Modulus of Elasticity | 1500 - 2500 MPa |
| Ultimate Tensile Strength | 0.44 - 0.55 MPa |
| Modulus of Rupture | 0.44 - 0.55 MPa |
| Standard Nominal Length & Height (MM) | Standard Nominal Thickness (MM) | M² per Pallet | No. of Pieces per Pallet |
| 600 x 200 | 100 | 21.60 | 180 |
| 125 | 17.30 | 144 | |
| 150 | 14.40 | 120 | |
| 200 | 10.10 | 84 |
AAC Benefits
| 1. Lightweight Starken AAC density is about one-fifth of that of normal concrete blocks, making it easily handled. Foundation (piles & pile caps) |
 | 2. Fire Resistant More superior than traditional masonry for products with fire resistant up to 4 hours for a nominal block thickness of 100mm. Heat insulation more than 3 times superior to brick wall. |
 | 3. Impact Resistant Wall erected using 100mm thick AAC products is classified as “Severe Duty” grade and able to withstand impact loads potentially resulting from rough usage. |
 | 4. Cost Effective Speed and ease of installation result in cost savings compared to traditional masonry construction. |
 | 5. Durable History of usage dated more than 50 years protecting building envelopes and remain durable even under extreme weather conditions. |
 | 6. Eco-friendly Starken AAC to help reduce at least 30% of environmental waste, decrease 50% of greenhouse radiation and over 60% integrated energy on the surface of brick. |

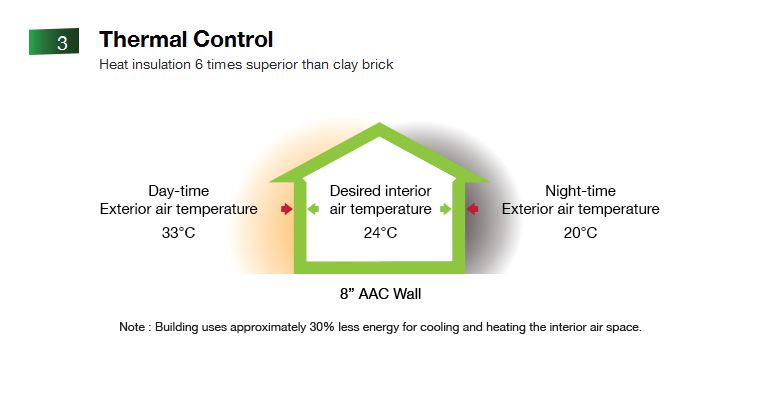

 | 7. Thermal Comfort & Energy Saving Starken AAC’s excellent thermal insulation properties result in improved comfort level and saves heating and cooling costs. |
 | 8. Sound Resistant Scientifically proven to provide better insulation to sound transmitted by air compared with other solid building materials. |
 | 9. Water Resistant Starken AAC contains millions of closed microscopic cells which strongly resist moisture from passing through. |
 | 10. Dimensional Accuracy Blocks and panels are manufactured under factory environment using state-of-the art modern machineries resulting in products with tighter dimensional tolerances. |
 | 11. Good Workability Starken AAC can be easily sawn, cut, carved, nailed or drilled using ordinary hand tools. |

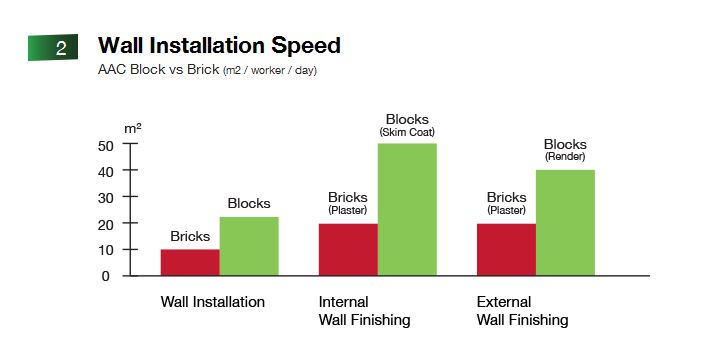

Comparison Between AAC and Brick
For more information, please visit http://www.starken.com.my/
