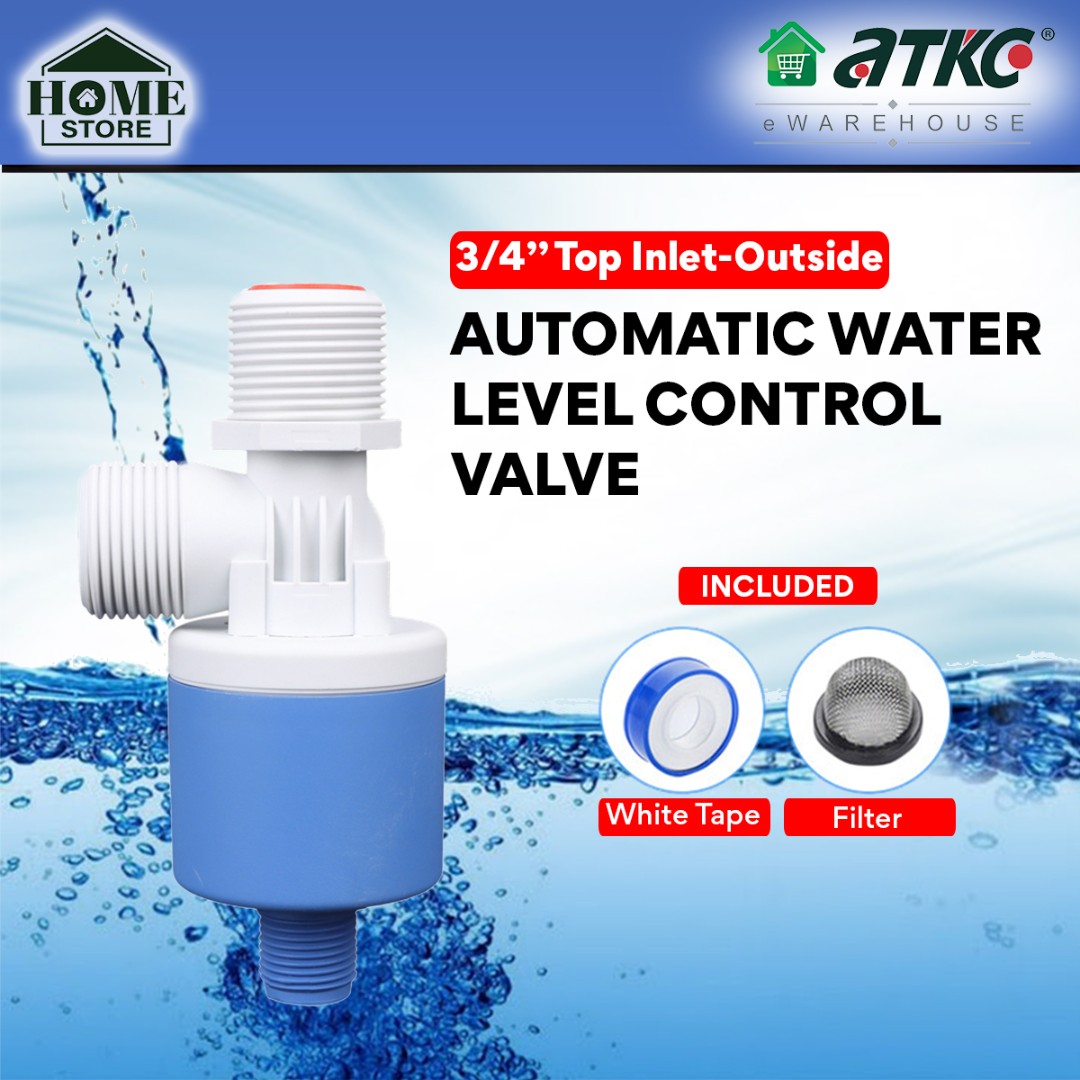

Home Store Automatic Water Level Control Float Valve (3/4'' Top/Vertical Inlet Mount Outside)

Specifications

• Name: Automatic Float Valve
• Male Thread: 3/4’’
• Type: Mount Outside
• Water Inlet Direction: Vertical/Top
• Work Presume: 0.2 – 10Bar
• Applicable medium: clean water
• Applicable medium temperature: ≤70 °
• High temperature medium temperature: 10 ° ~ 70 °

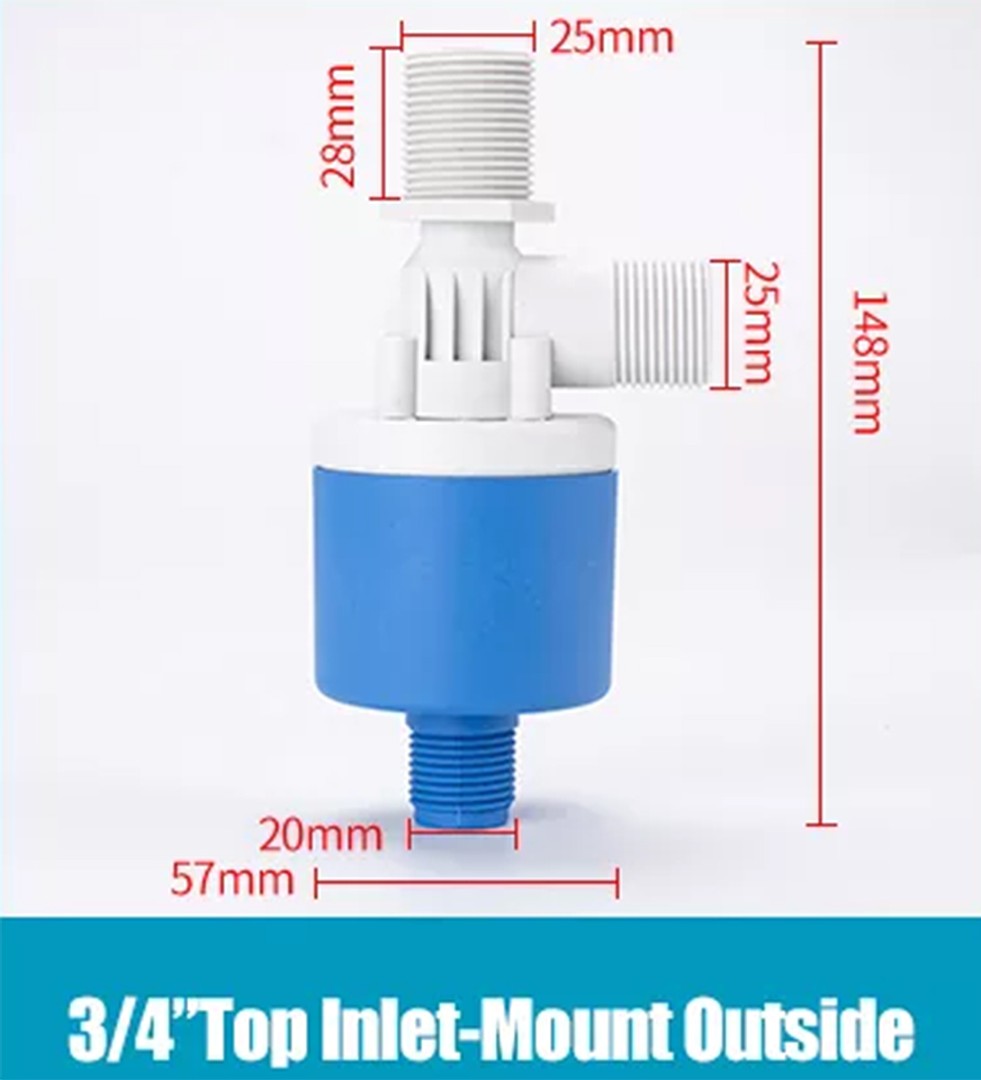

• Size: about 4.64 x 3.07 x 2.28 inch/ 11.8 x 7.8 x 5.8 cm,
• Color: Blue

Install Tips

• This product is a liquid level control valve.
• After installation, the float must be vertical. If you need to install from the top, you need an elbow to connect the float valve and the inlet line. First, fix the water inlet pipeline on a horizontal surface, and then connect the automatic water level control valve to the water inlet according to the standard.
• The main water inlet should be aligned with the normal diameter of the control valve.
• When in use, the shut-off valve should be fully opened.
• If two valves are installed in the same tank, they should be kept at the same level.
• Before installation, please clean the impurities in the pipeline to prevent blockage.
• If the water quality is not good, the valve needs to be properly maintained.
• If the user finds that the time for adding water becomes longer, he can upload the water inlet and rinse

What’s in the box?

• 1x Water Level Control Valve
• 1x White Tape
• 1x Filter
