Home Store #101D Short Tee Key Clamp Fitting Hot-Dip Galvanized 48.3MM
Home Store #101D Short Tee Key Clamp Fitting Hot-Dip Galvanized 48.3MM
RM24.00
Price in reward points: 9600
- Model: HS-KCF101D
Products Sold: 0
Product Views: 24
Description

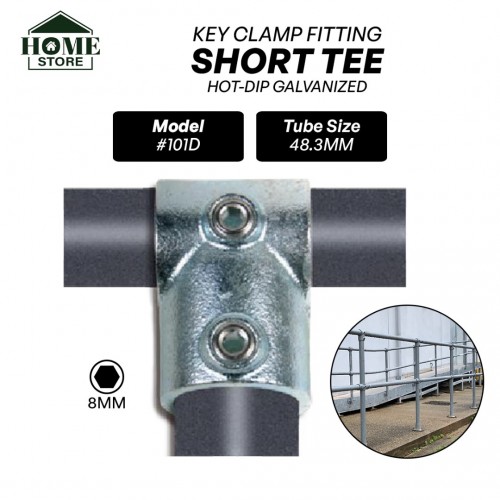

The Key Clamp Short Tee is a robust pipe fitting designed to connect two tubes at a right angle (90°), where one tube passes through the clamp and the other joins perpendicularly. It is ideal for creating vertical-to-horizontal connections in handrails, barriers, scaffolding systems, and heavy-duty frames. This fitting is compatible with tubes having a 48.3mm outer diameter (1½" nominal bore).
Specifications
- Type: Short Tee #101D
- Pipe Compatibility: 48.3mm outer diameter (1½" NB tube)
- Material: Hot-dip galvanized
- Finish: Galvanized
- Screw Size: 8mm
- Fixing Method: Secured using a hex key to tighten grub screws
- Usage: Indoor and outdoor
Features
- Strong 90° connection between horizontal and vertical tubes
- Quick and easy assembly – no welding or threading required
- Corrosion-resistant galvanized finish for long-lasting durability
- Reusability – can be dismantled and reused for different configurations
- Compatible with standard key clamp systems for modular builds
- Suitable for DIY and professional use in railings, racks, signage frames, and more
