Corkjoint Dowelform Dowelbar Sleeves (Including End Cap) 20MM (D) x 150MM (L)

Tags: Corkjoint , Dowelform Dowelbar Sleeves

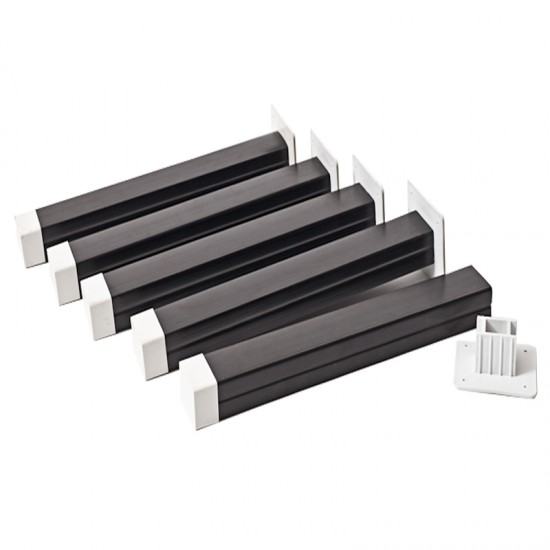

Corkjoint Dowelform Dowelbar Sleeves (Including End Cap) 20MM (D) x 150MM (L)

Based on 0 reviews. | Write a review
RM3.30
Price in reward points: 1200
Products Sold: 0
Product Views: 4648
Add to Cart
Send Inquiry
Click to share this page to your friends & families and start earning. Affiliate

SPECIAL ORDER - OUR SPECIAL ORDER SERVICE ALLOWS YOU TO CHOOSE FROM A EVEN BIGGER RANGE. Special Orders require 7 to 14 working days to be ready for collection or delivery and some products might take longer to order in. Please contact us for more information or estimated delivery time before placing your order.



Product Description

  • CORKJOINT Dowelform is a two part dowelbar sleeve system comprising a rigid PVC dowelbar sleeve and a reusable
    rigid PVC nailing plate. Dowelform is suitable for use with 20mm, 25mm and 32mm round or square dowelbars..
  • Dowelform allows for longitudinal movement as well as lateral (sideways) movement of the dowelbar for maximum
    joint performance. Compressible fins on either side of the sleeve enables the dowelbar to move sideways and locate
    the dowel centrally. .
  • Dowelform allows your dowelbars to be parallel to the subgrade and properly aligned. You can also achieve lateral (sideways) movement of +/-10 mm for round and square bars which will help to reduce internal stresses on the concrete..



Features

  • Diameter (mm): 20mm.
  • Length (mm): 150mm.
  • Note: To suit 20mm diameter Dowelbar and half of Dowelbar length.
  • Technical Data Sheet (TDS).



Advantages

  • Suitable for use with round and square dowels.
  • Allows for 20mm of longitudinal expansion movement of concrete.
  • Allows lateral (sideways) movement of all dowels.
  • No misaligned dowels to restrict joint movement.
  • Can prepare formboards with nailing plates prior to installation.
  • Eliminates drilling holes through formwork.
  • No dowelbars protruding form concrete.
  • Nailing plates are re-usable.
  • No need to coat dowelbars with bitumen, grease or de-bonding agents.
  • No need to apply an expansion cap on end of dowelbar.
  • Dowelled joint possible in all directions.
  • Suitable for post tensioning.



Area of Application

Construction joints, contraction joints, expansion joints in industrial buildings, roadways, curved joints, post tensioned slabs and new to existing concrete.
