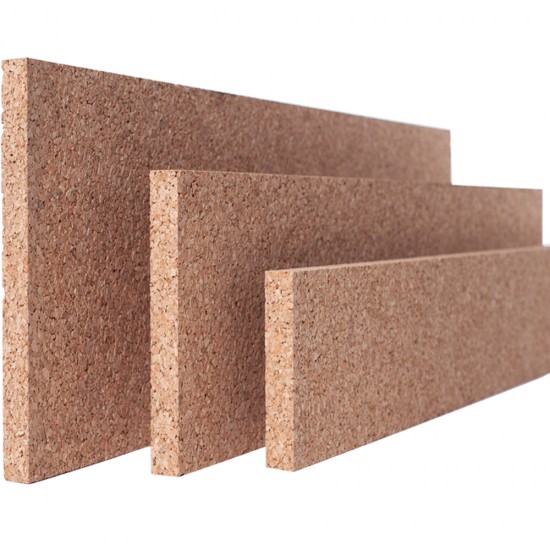

Corkjoint® N.E.C Resin Bonded (Type II) Cork Fillerboard 10MM (T) x 610MM (W) x 915MM (L)
Corkjoint® N.E.C Resin Bonded (Type II) Cork Fillerboard 10MM (T) x 610MM (W) x 915MM (L)
- Brand Corkjoint
- Model: CJ-NEC-10
SPECIAL ORDER - Special Orders require 7 to 14 working days to be ready for collection or delivery and some products might take longer to order in. Please contact us for more information or estimated delivery time before placing your order.
Description
- Corkjoint® N.E.C is a non-expanding resin bonded cork fillerboard made from natural clean cork with resin binder and contains no bitumen and it is very eco-friendly..
- As a natural based product, Corkjoint® N.E.C is not only able to withstand heavy trafficable conditions but also environmental and climatic changes and has anti termite resistance..
- The high density of Corkjoint® N.E.C ensures long life compression and recovery, making it highly can be drilled for dowel joints to pass through..
- Corkjoint® N.E.C Cork Fillerboard is manufatured to ASTM Type II from high grade granulated cork and resin binders making it highly suitable as a fillerboard support for joint sealants for use in movement joints..
- Supplied in sheet 915mm x 610mm in variety of thickness. Also available upon request with a tear off cap to suit the joint sealant application depth..
Features
- Dimension: 915mm (L) x 610mm (W) x 10mm (T).
- Technical Data Sheet (TDS).
Area of Application
| AREA OF APPLICATION | |
| Foothpaths | Reservoirs |
| Driveways | Dams |
| Pedestrian malls | Water treatment plants |
| Brick or block walls | Sewage treatment plants |
| Heavy trafficable areas | Swimming pools |
| Ideal for wet areas | Highways and bridges |
| Water tanks | Airport runways |
Physical Properties
| PROPERTY | TEST METHOD | RESULT |
| Pressure to compress to 50% of thickness (kPa) | ASTM D1752-Type II | 750 |
| Recovery in one hour after compression (%) | ASTM D1752-Type II | 92 |
| Extrusion (mm) | ASTM D1752-Type II | 1.6 |
| Boiling in hydrochloric acid | ASTM D1752-Type II | Pass |
| Accelerated weathering | ASTM D1752-Type II | Pass |
| Water resistant | ASTM D1752-Type II | Pass |
| Fungus & pest resistant | ASTM D1752-Type II | Pass |
Installation Procedures
CORKJOINT® N.E.C Cork Fillerboard is supplied to site packaged ready for use. Simply glue in place against the existing slab and pour the concrete against it. Void formers can be used to remove later to allow for a sealant over the top or use it to the surface of the concrete.
Typical Applications
Written Specification
Where shown in the drawings, the expansion joint fillerboard shall be Corkjoint® N.E.C Cork Fillerboard manufactured to ASTM D1752 Type II from high grade granulated cork and resin binders, with a minimum density of 200 - 250kg/m³. The application / installation of the product must be in accordance with the manufacturer's recommendations.
Health And Safety Information
For further information or advice on health and safety precautions, safe handling, storage and correct disposal of products, please refer to the most recent product Material Safety Data Sheet (MSDS), which is available upon request.
Disclaimer
All product images shown are for illustration purposes only. Actual products may varies in term of size, type, brand, version, colour, and other relevant characteristics.
