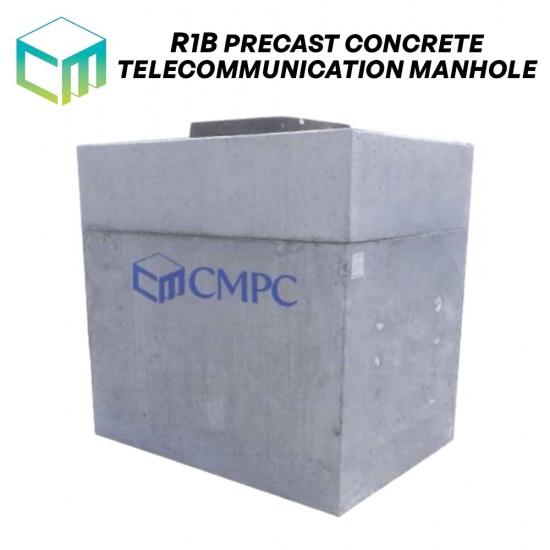

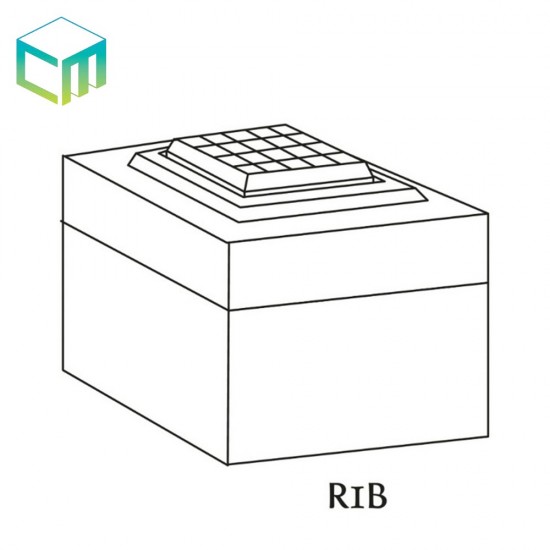

CM R1B Precast Concrete Manhole Telecommunication Full Set C/W Cast Iron Cover 2100MM (L) x 1500MM (W) x 2350MM (H)

Features
• Suitable replacement for conventional cast-in-situ manhole.
• Great cost and time savings with good factory quality finishes.
• Easy installation with minimal interruption to traffic flow.
• Sustain an eco-friendly surrounding as it generates lesser construction wastes.
• Efficient loading access capacity.
• Good quality control with minimum formwork and manpower.

Specification
• Item Code: FS-JC9C-CIC
External Dimensions Include Cover
• Length (MM): 2100 MM
• Width (MM): 1500 MM
• Height (MM): 2350 MM
Internal Dimensions
• Length (MM): 1780 MM
• Width (MM): 1180 MM
• Height (MM): 1800 MM
• Cover Type: Square Iron Cover
• Operator Logo: -
• Gross Weight (KG): 8,000 KG
• Duct Ways (100MM dia.) Side: -
• Duct Ways (100MM dia.) End: 8

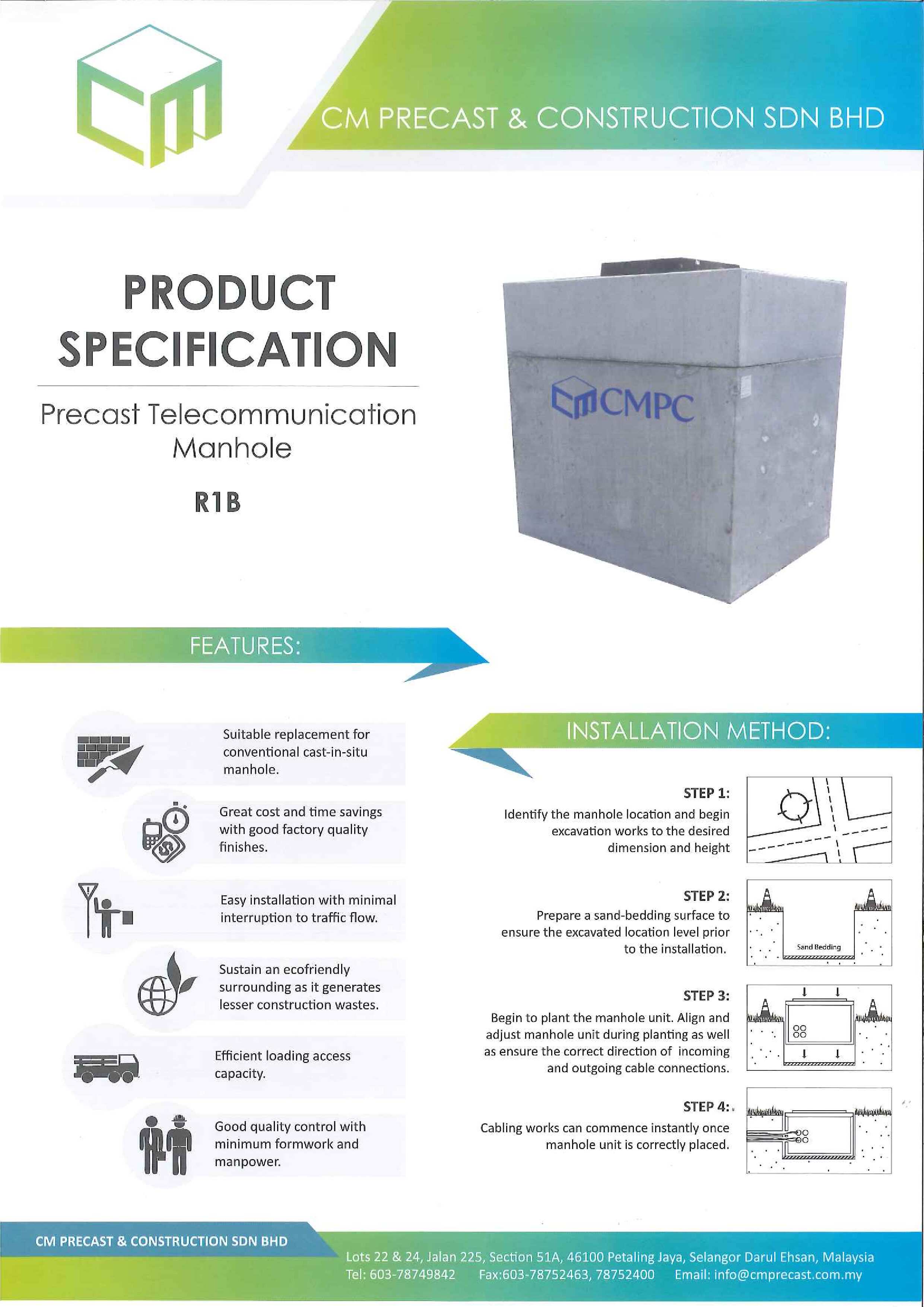

Installation Method:
• Step 1: Identify the manhole location and begin excavation works to the desired dimension and height.
• Step 2: Prepare a sand-bedding surface to ensure the excavated location lever prior to the installation.
• Step 3: Begin to plant the manhole unit. Align and adjust manhole unit during planting as well as ensure the correct direction of incoming and outgoing cable connections.
• Step 4: Cabling works can commence instantly once manhole unit is correctly placed.

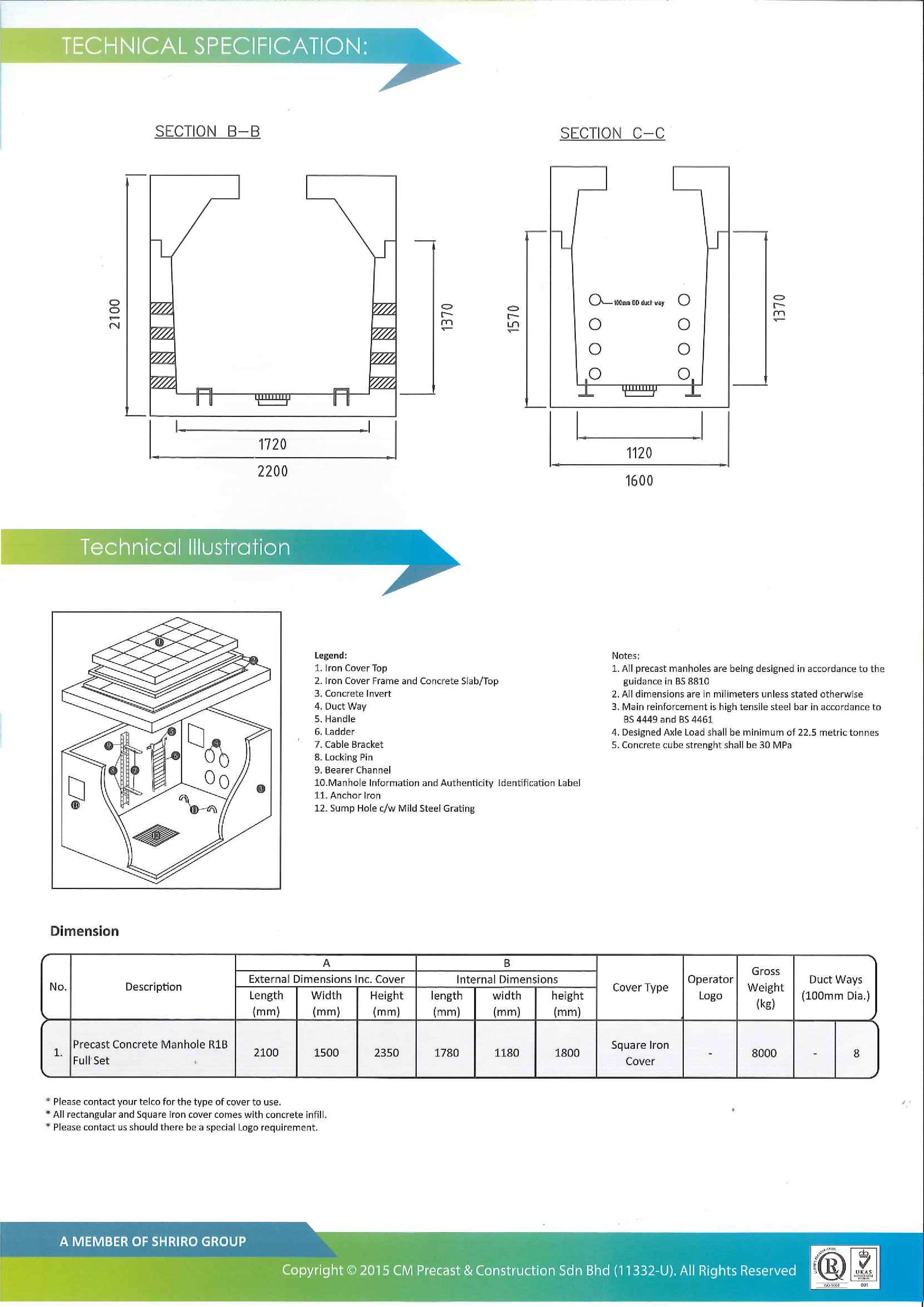

Legend:
1. Iron Cover Top
2. Iron Cover, Frame, and Concrete Slab/Top
3. Concrete Invert
4. Duct Way
5. Handle
6. ladder
7. Cable Bracket
8. Locking Pin
9. Bearer Channel
10.Manhole lnformation and Authenticity ldentification Label
11. Anchor Iron
12. Sump Hole c/w Mild Steel Grating

Notes:
1. All precast manholes are being designed in accordance to the guidance in BS 8810.
2. All dimensions are in milimeters unless stated otherwise.
3. Main reinforcement is high tensile steel bar in accordance to BS 4449 and BS 4461.
4. Designed Axle Load shall be minimum of 22.5 metric tonnes.
5. Concrete cube strength shall be 30 MPa.
